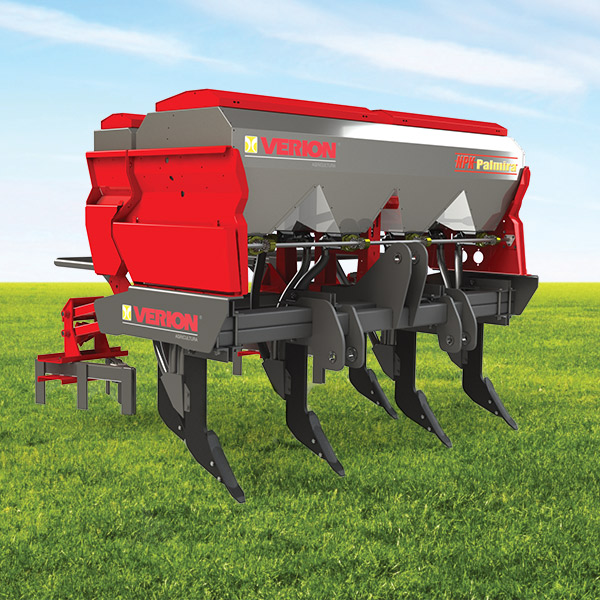

Fertilizer for 1 to 3 products NPK, for three points
This equipment allows the application of fertilizer to sugar cane crops. It has a dosing system that allows the application of up to 3 different fertilizers with an independent dose each. This high-precision system is hydraulically commanded and electronically controlled. The equipment has various accessories such as incorporators, decompactors and furrow shaper. Available in various types and sizes. It is attached to the tractor by means of a three-point hitch. Its modular design allows it to be configured at different distances between rows, with application to the side of the planting line, fertilizing up to 3 lines per pass. Its robust design allows it to be used in the most severe soil conditions. It has a maximum width of 2.8 m, which allows it to be transported on roads.
Hopper capacity: 400. 400. 670L
Weight: Equipment without fertilizer load: 1400Kg
Equipment with fertilizer load: 3000Kg
Total fertilizer load volume: 1470 L (approx. 1600Kg)
Extras: Applicator disc. Rolo. Disc harrow
Chassis with two tool-carrying axes composed of tubes made of folded sheet metal with internal reinforcements.
It has 4 parabolic type scarifiers with changeable tips placed on the front tool holder axis.
Furrow shaping weeder, located at the back of the fertilizer, performs surface removal and interfurrow shaping work.
Min. power required 140/160 HP.
* Consult about the different types of subsoiling accessories, spikes, rollers, side discs, according to your needs.
* Consult for specific catalog.
Composed of two hoppers available in:
• Stainless steel.
• Carbon steel with double anti-corrosion treatment, corrosion and UV resistant paint.
|Option 1||Option 2||
A = 670L
B = 400L
A+B = 1070L
C = 400L
VCOM 5.6 COMPUTER
